Credential Management

Before you start using vJailbreak, you need to provide credentials for both the VMware vCenter and OpenStack/PCD environments.

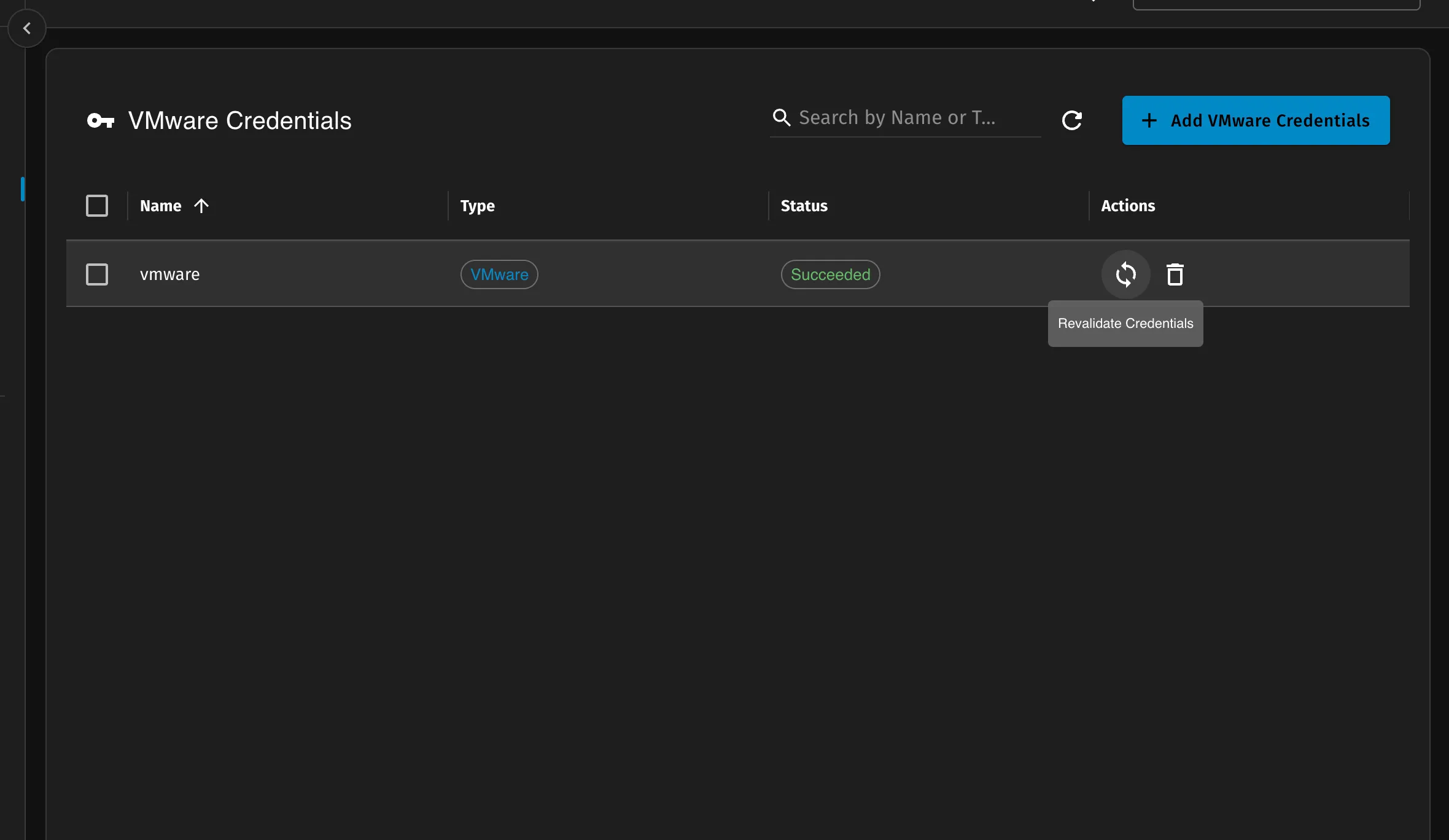

VMware vCenter Credentials

VMware vCenter credentials are required to connect to the vCenter server and retrieve information about the virtual machines you want to migrate.

The credentials should have enough permissions to retrieve information about the virtual machines you want to migrate and if you are looking to the cluster conversion, the credentials should have enough permissions to retrieve information about the cluster, put host into maintenance mode, etc (see Cluster Conversion for more details).

The VMware credentials needs vCenter Server IP address or vCenter Server name, username and password. The credentials also take the Datacenter name and the VMs, Hosts being worked on would be restricted to the Datacenter specified in the credentials.

Some VMware environments may be using self signed certificates, in such cases, you would need to “Allow insecure connection” option in the credentials.

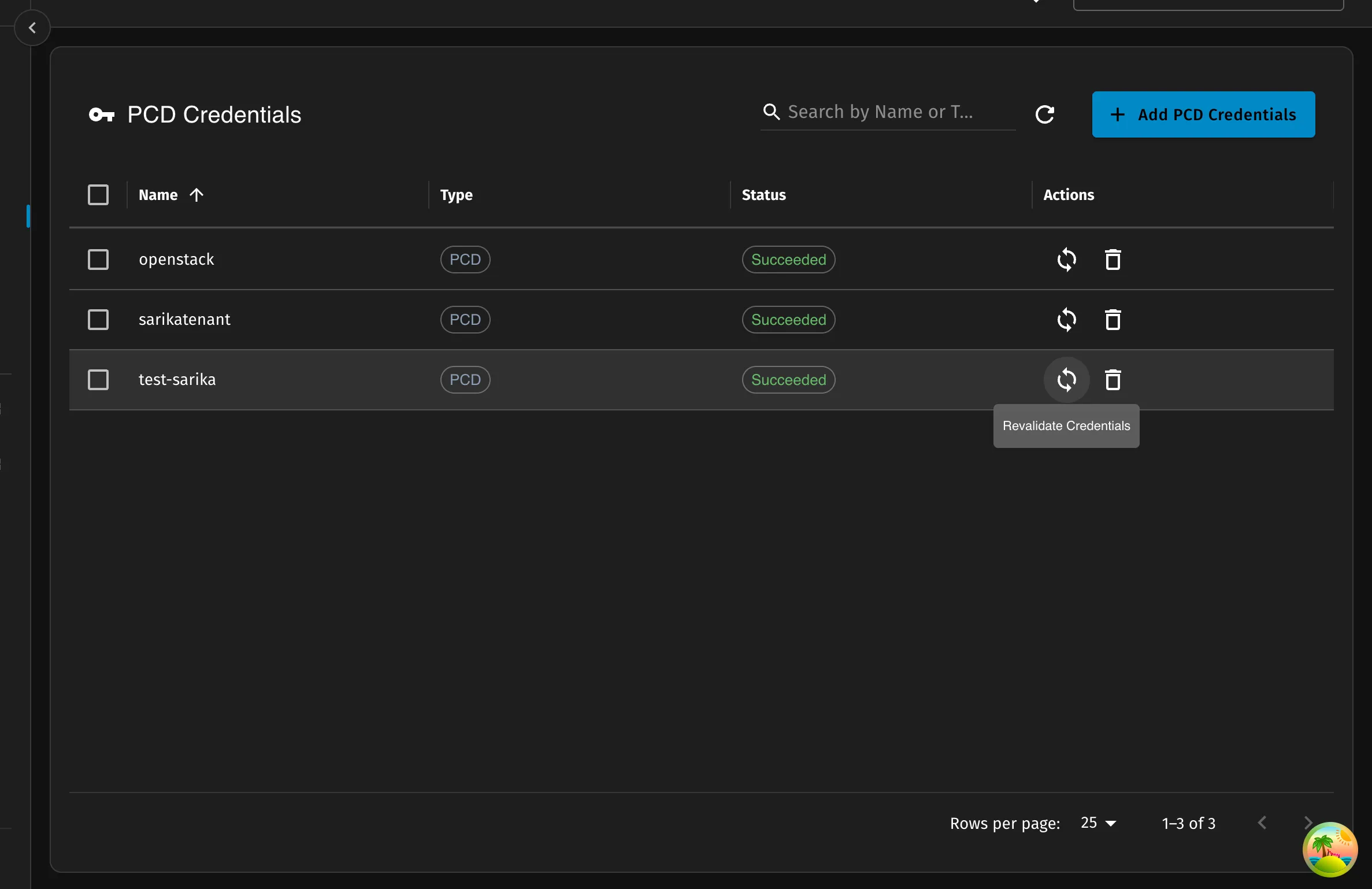

OpenStack/PCD Credentials

OpenStack/PCD credentials are required to create VMs inside the OpenStack/PCD environment. The credentials are supplied via the openstack.rc file that is available in the PCD environment.

To copy the content of the openstack.rc file, you should navigate to Settings > API Access > pcdctl RC section.

If using PCD we recommend toggling the “Is PCD credentials” option. This will automatically indicate to vJailbreak that the credentials are for PCD and would use PCD Cluster as a destination for different migrations.

For non PCD environment the openstack.rc file will be available as part of various distribution and documentation. The openstack.rc file is typically used for any automation with the OpenStack CLI.

Password-Based Authentication

Required Variables

vJailbreak requires the following environment variables to be present in your admin RC file. All of these variables are mandatory and the migration will fail if any are missing:

Variable	Description	Example
`OS_AUTH_URL`	OpenStack Keystone authentication URL	`https://keystone.example.com:5000/v3`
`OS_USERNAME`	OpenStack username with admin privileges	`admin`
`OS_PASSWORD`	Password for the OpenStack user	`your-secure-password`
`OS_REGION_NAME`	OpenStack region where VMs will be created	`RegionOne`
`OS_PROJECT_NAME`	OpenStack project name for VM deployment	`service`
`OS_PROJECT_DOMAIN_NAME`	OpenStack project domain name	`Default`
`OS_AUTH_TYPE`	OpenStack authentication type	`password`
`OS_IDENTITY_API_VERSION`	OpenStack identity API version	`3`
`OS_USER_DOMAIN_NAME`	OpenStack user domain name	`Default`
`OS_INTERFACE`	OpenStack API interface type	`public`

Optional Variables

Variable	Description	Example
`OS_INSECURE`	Skip SSL certificate verification	`true` or `false`

User Permissions

The user specified in OS_USERNAME must have administrative privileges in OpenStack to:

Create and manage virtual machines
Access network and storage resources
Create and manage volumes
Access compute, network, and storage services

The project specified in OS_PROJECT_NAME must exist and have sufficient quotas for the VMs being migrated.

Example Admin RC File (Password-Based)

export OS_USERNAME=<your-username>
export OS_PASSWORD=<your-password>
export OS_AUTH_URL=https://<fqdn of the openstack/pcd>/keystone/v3
export OS_AUTH_TYPE=password
export OS_IDENTITY_API_VERSION=3
export OS_REGION_NAME=region-1
export OS_USER_DOMAIN_NAME=Default
export OS_PROJECT_DOMAIN_NAME=Default
export OS_PROJECT_NAME=service
export OS_INTERFACE=public
export OS_INSECURE=false

Token-Based Authentication

In addition to password-based authentication, vJailbreak also supports token-based authentication for OpenStack/PCD environments.

With token-based authentication, access is provided using a Keystone authentication token instead of a username and password. The token must be generated in your OpenStack environment and supplied to vJailbreak via the openstack.rc file.

This authentication method is useful in environments where password-based authentication is restricted or where short-lived credentials are preferred.

Required Variables

When using token-based authentication, the following environment variables must be present in the RC file:

Variable	Description	Example
`OS_AUTH_URL`	OpenStack Keystone authentication URL	`https://keystone.example.com:5000/v3`
`OS_IDENTITY_API_VERSION`	OpenStack identity API version.	`3`
`OS_REGION_NAME`	OpenStack region where VMs will be created	`RegionOne`
`OS_PROJECT_NAME`	OpenStack project name for VM deployment	`service`
`OS_PROJECT_DOMAIN_NAME`	OpenStack project domain name	`Default`
`OS_INTERFACE`	OpenStack API interface type	`public`
`OS_AUTH_TOKEN`	Openstack authentication token	`<keystone-auth-token>`
`OS_AUTH_TYPE`	Openstack authentication type	`token`

Optional Variables

Variable	Description	Example
`OS_INSECURE`	Skip SSL certificate verification	`true` or `false`

Example Admin RC File (Token-Based)

export OS_AUTH_URL=https://<fqdn of the openstack/pcd>/keystone/v3
export OS_IDENTITY_API_VERSION=3
export OS_REGION_NAME=<region-name>
export OS_PROJECT_NAME=<project-name>
export OS_PROJECT_DOMAIN_NAME=Default
export OS_INTERFACE=public
export OS_AUTH_TOKEN=<keystone-auth-token>
export OS_AUTH_TYPE=token

Notes on Token-Based Authentication

The OS_AUTH_TOKEN must be generated in your OpenStack environment and must be valid at the time of migration.
Token expiration is controlled by Keystone. If the token expires, the migration will fail and a new token must be provided.
The openstack.rc must contain both the Domain and the Project/Tenant information. When using the OpenStack credentials, the Domain and Project/Tenant information is used as the destination domain and project/tenant for the OpenStack/PCD environment.
